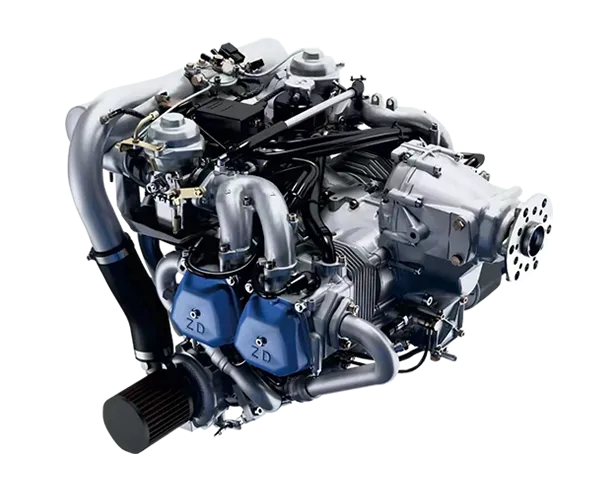

CA520T-115HP Aero Engine

CA520T-115HP Aero Engine

$276,180.00

ENGINE DATA

Displacement(cm³)：1211
Dimension (mm) ：670x580x540
Dry weight (kg/lb)：74.5±1/164±2
Maximum power (kW-r/min)：74.5±1/164±2
Maximum continuous power (kW-r/min)：73.5/5500
Power weight ratio (kW/kg)：1.13
Compression ratio：9:1
Start mode：Electrical starter
Ignition：Dual capacitor ignition
Fuel supply mode：Carburetor
Fuel type：RON95 gasoline
Cooling mode:Water cooled(cylinder head) and air cooled(cylinder)
TBO(h):2000

Description

Standard Package includes:
Gearbox with Overload Clutch i=2.43
Electric Starter (12V/700Wt)
Starter Relay
Electronic Dual ignition System
Regulator Rectifier
2 x Carburetors with fuel lines
Turbocharger with Electronic Controlled Waste Gate
2 X External Electric Fuel Pump
Engine Suspension Frame
Stainless Steel Exhaust System
Fuel Tank without Hoses
Coolant Pump and Internal Coolant Hoses
Expansion Tank
Sensors X 2 for Cylinder Head Temperture
Sensor X1 for Fuel Temperature
Fuel Pressure Sensor X 1 with Harness
Integrated AC Generator (12V/20A DC) 1200W

Optional:
Fuel Radiator
Coolant Radiator
Exhaust Gas Temperature Sensor
Motor Mount and Motor mount ring.
Overflow Bottle
Air Filter
Shock Mount Set
Electric Starter (12V/900Wt)
