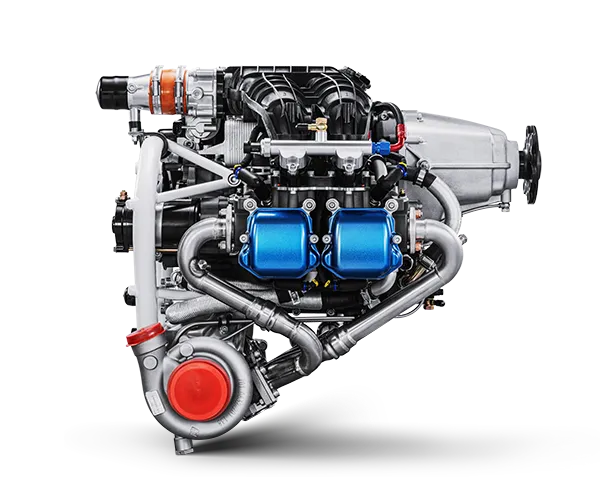

CA550TI -145HP Aero Engine

CA550TI -145HP Aero Engine

40786,00 €

CA550TI -145HP Aero Engine

The engine body (need to check with the customer whether there is an overload clutch) also includes: fuel pump (2), overflow bottle (1), fuel filter (1), air filter (1), exhaust system kit (1), oil temperature sensor (1), liquid temperature sensor (4)

Optional:
Motor Mount and Motor mount ring.

Product Advantages:
145 HP
Electric start
Water cooling
With turbocharger
DCDI double ignition
Dry weight: 80 kg
Displacement: 1417 ml
Max power: 105/5800 kW/rpm
Max Continuous power: 90/5500 kW/rpm
Propeller speed reduction gearbox
Min. 95# RON gasoline or Avgas
SFC at cruise: 285 g/kW.h
TBO 1000h

Description

CA550TI -145HP Aero Engine

  • 4-cylinder and 4-stroke horizontally-opposed
  • Water cooled
  • Dual ignition redundancy design
